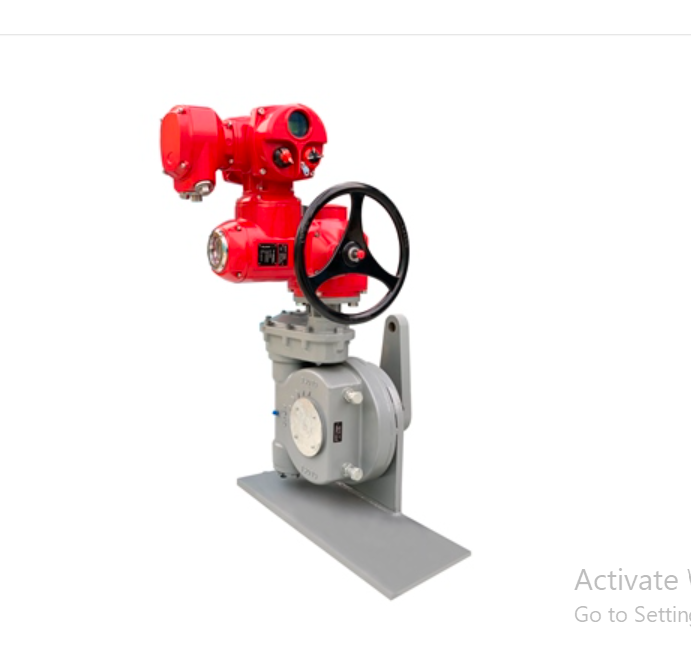

MULTI TURN ELECTRIC ACTUATOR

Price 1.0 INR/ Number

Get a Price/Quote

About MULTI TURN ELECTRIC ACTUATOR

multiturn actuators are used for automation of various valves including butterfly valve, ball valve, gate valve, control valves, and dampers. Applications include process industries like petrochemical, chemical, water treatment, shipping, paper, power plants, steel plants, building automation, and other industries. EM series actuators are available in operating voltages 3 Ph 440/415/400/380 V AC & 1 Ph 220/110 V AC. It is suitable for both ON-OFF duty and modulating duty applications with control signal options 4~20mA or 0~10V DC. EM series actuators are available in various models with a torque output range from 15 Nm to 1200 Nm and speed from 40 rpm 140 rpm. The operating range of EM series actuators can be extended when used in combination with suitable secondary gearboxes like bevel gearbox, worm gearbox, and linear thrust unit. Each of these gearboxes is available in various sizes to match application requirements

Key Features

Supply Voltage

415 V AC (10%), 50/60 Hz
380 V AC, 460 V AC (Available on request)

Enclosure

Weather Proof IP 67

Torque Range

100 NM 2500 NM

Manual Over-ride

Hand Wheel Type

Integral Starter Unit

Selector Switches               : Open/Stop/Close
Selector Switches               : Auto/Manual or Remote/Local
Indicator lamp                     : Open/Close/Error

Various Options

ON/OFF Type
Modulating Control (Signal Input 4~20 mA / 2~10 V DC)
Potentiometer Feedback (4~20 mA)
Auxiliary Limit Switches (2 Units Potential Free)
2 Wire for ON/OFF Operation.

Model Number

TTM BASIC	TTM-IN	TTM-IT
TTM-M-IN	TTM-IT-PRO	TTM-IT-VOT

Equivalent Models

ROTORK K Sycroset	Syncropak	ROTORK GK
AUMA SA3 SAR 100	AUMA GS	AUMA GF
MARSH AUTOMATION Emtork M60	M150	M300
BERNARD ST6 ST14 ST30	BERNARD BIQ	SIEMENS SQL	HAYWARD HZ
